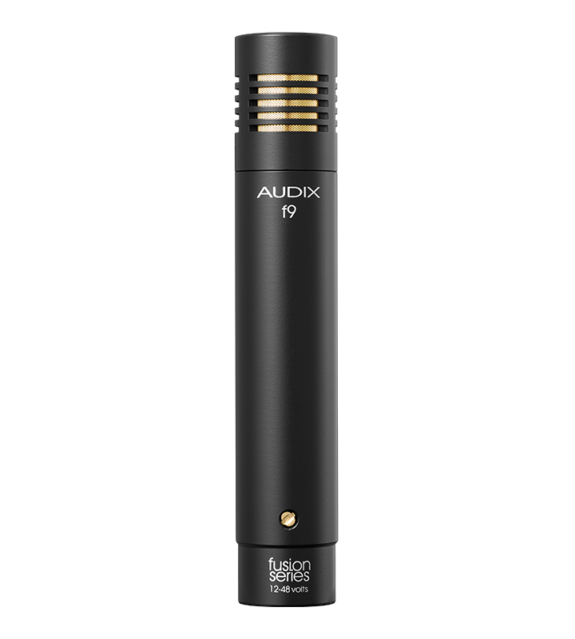

ALL-PURPOSE PENCIL CONDENSER MICROPHONE
This f9 all-purpose pencil condenser microphone is suited for instruments requiring detailed reproduction in mid-high and extended high-end frequency ranges in live and studio applications. A wide cardioid pick-up pattern paired with high sensitivity allows close, overhead, and distance miking.
With its low impedance and balanced output, the f9 instrument condenser microphone has an interference-free performance. This microphone operates on phantom power of 12-48 V.
Stock changes on a daily basis, current lead times on some models is 1-2 weeks. Contact us prior to ordering if you have any concerns.
| Transducer Type | Pre-Polarized Condenser |
| Frequency Response | 40 Hz – 20 kHz |
| Polar Pattern | Cardioid |
| Output Impedance | 200 ohms |
| Sensitivity | 8 mV / Pa @ 1k |
| Capsule Technology | Gold Vapor Deposition |
| Equivalent Noise Level | 25 dB (A-weighted) |
| Signal to Noise Ratio | 69 dB |
| Off-Axis Rejection | >24 dB |
| Maximum SPL | ≥137 dB |
| Power Requirements | 12-48 V Phantom |
| Dynamic Range | 112 dB |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
| Materials / Finish | Zinc Alloy / Black Finish |
| Weight | 95 g / 3.3 oz |
| Length | 111 mm / 4.37 in |
